1. 1°/hr bias instability;
2. 0.25°/√hr angular random walk;
3. 5°/hr bias stability.
The ER-MG-056, a low cost Tactical Grade MEMS Gyro with 1 deg/hr Bias of instability and 0.25°/ √h of Angular random walk, is a single-axis MEMS angular rate sensor (gyroscope) capable of measuring angular velocity up to a maximum of ±400°/s with digital output compliant to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.
The ER-MG-056 is intended for industrial, instrumentation, stabilization, and other high performance applications. An advanced, differential sensor design rejects the influence of linear acceleration, enabling the ER-MG-056 to operate in exceedingly harsh environments where shock and vibration are present.
The ER-MG-056 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−45°C to +85°C).
Proven and robust silicon MEMS gyro
Up to ±400°/s measurement range
3°/hr bias instability
0.25°/√hr angular random walk
Digital output (SPI slave)
5V operation (4.75~5.25V supply)
Low power consumption (35 mA)
High shock and vibration rejection

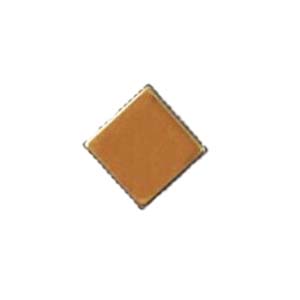

Hermetically sealed ceramic LCC surface mount package (11 x 11 x 2mm)
Integrated temperature sensor
Azimuth, attitude, position measuring and keeping In GNSS-assisted INS
Heading , pitch ,roll measuring In AHRS for UAV
Motion survey and keeping in MRU
Attitude & azimuth keeping, positioning in IMU
Guidance, navigation, control in tactical MEMS weapon system
Stabilizing & Pointing in satellite antenna,target tracking system
Robotic Control & Orientation in Autonomous machines, Unmanned vehicles
