High Performance MEMS Gyroscope

  • Amy

    Сообщения: 51 Репутация: N Группа: Кто попало

    Spritz 21 июля 2023 г. 5:02

    1. 0.3°/hr bias instability;
    2. <0.125°/√hr angular random walk;
    3. 3°/hr bias stability.

    ER-MG-067, a high precision Tactical Grade MEMS Gyro with 0.3 deg/hr Bias of instability and 0.125°/ √h of Angular random walk, is a single-axis MEMS angular rate sensor (gyroscope) capable of measuring angular velocity up to a maximum of ±400°/s with digital output compliant to SPI slave mode 3 protocol. Angular rate data is presented as a 24-bit word.

    ER-MG-067 is intended for industrial, instrumentation, stabilization, and other high performance applications.

    An advanced, differential sensor design rejects the influence of linear acceleration, enabling ER-MG-067 to operate in exceedingly harsh environments where shock and vibration are present.

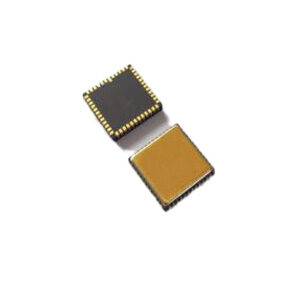

    The ER-MG-067 is available in a hermetically sealed ceramic LCC surface mount package, and is capable of operating at 5V supply and a wide temperature range (−45°C to +85°C).


    Proven and robust silicon MEMS gyro

    Up to ±400°/s measurement range

    0.3°/hr bias instability

    0.125°/√hr angular random walk

    Digital output (SPI slave)

    5V operation (4.75~5.25V supply)

    Low power consumption (35 mA)

    High shock and vibration rejection

    Hermetically sealed ceramic LCC surface mount package (11x11x2mm)

    Integrated temperature sensor

    RoHS compliant


    Azimuth, attitude, position measuring and keeping In GNSS-assisted INS

    Heading , pitch ,roll measuring In AHRS for UAV

    Motion survey and keeping in MRU

    Attitude & azimuth keeping, positioning in IMU

    Guidance, navigation, control in tactical MEMS weapon system

    Stabilizing & Pointing in satellite antenna,target tracking system

    Robotic Control & Orientation in Autonomous machines, Unmanned vehicles
    If you are interested in our products, please leave your email, we will send you detailed product information or contact us on the official website.
    High Performance MEMS Gyroscope Factory - ERICCO China [ericcointernational.com]
